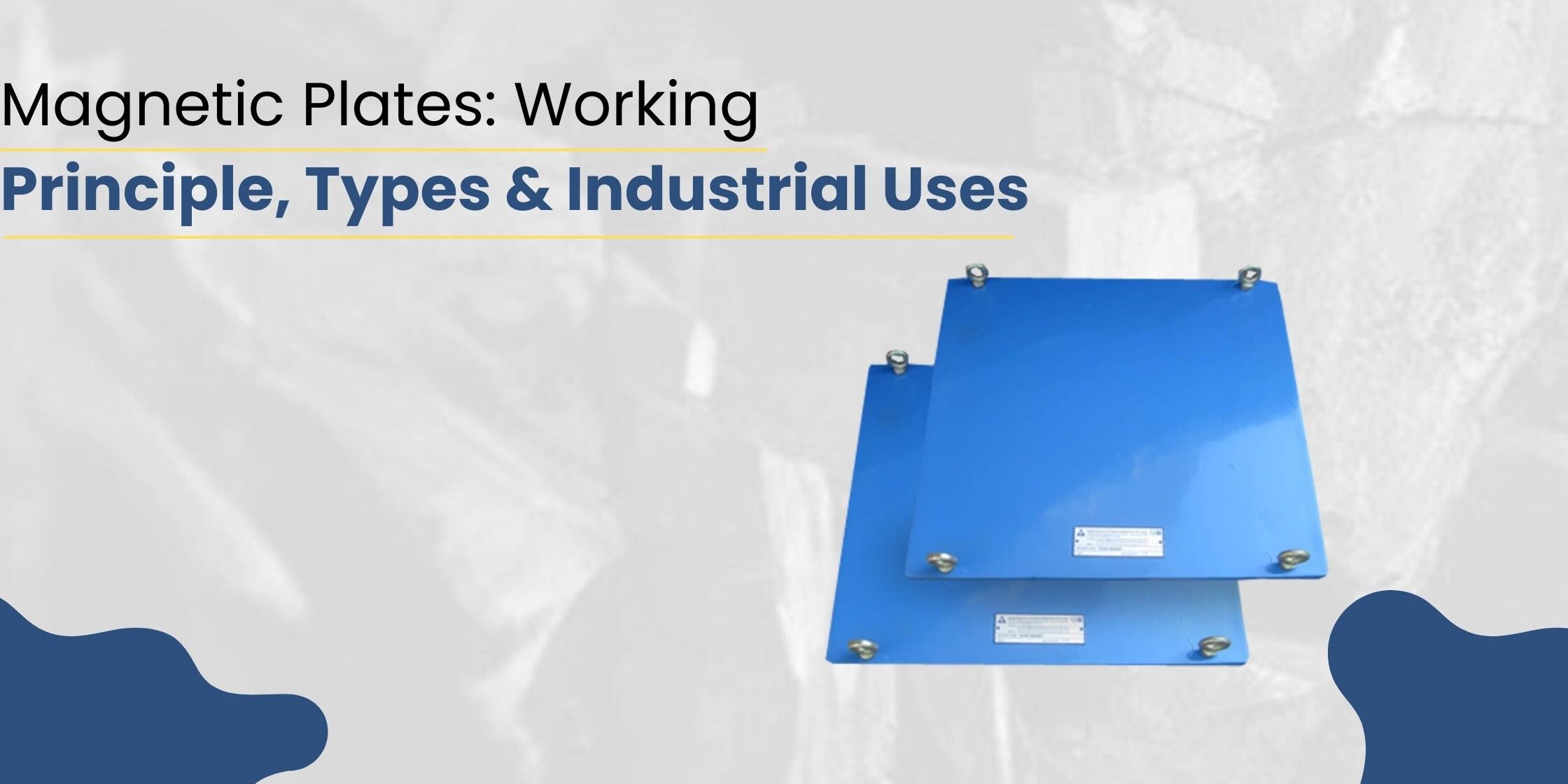

In modern industrial processing, the removal of ferrous contamination is essential to product purity, equipment protection, and continuous workflow. One of the easiest and most effective ways to effect magnetic separation is with a magnetic plate-a robust and reliable unit employed widely in food processing, recycling, plastics, chemicals, and mining. Whether mounted in chutes, hoppers, or conveyor systems, a magnetic plate ensures steady extraction of metallic impurities ahead of downstream machinery. With the increasing focus on product quality and machinery protection, the need for efficient magnetic separation equipment is on a continual rise-and magnetic plates remain among the most trustworthy solutions.
Working Principle of Magnetic Plate
The working principle of a magnetic plate is based on a very simple but powerfully effective principle of creating a strong, focused magnetic field that can attract and capture ferrous contaminants. The plate is usually mounted above or behind the flow of material so its magnetic field can draw out unwanted metals such as bolts, nails, shavings, and rust flakes.
In a typical system, material flows either under or over the magnetic surface. As the metal particles approach the magnetic circuit, they are instantly attracted to the plate face and remain there until the system is shut down for cleaning. In more sophisticated systems, such as those with a magnetic plate separator, the captured contaminants can be more easily removed, so operation can be virtually continuous, even in very high-volume situations.
Success in this magnetic separation process depends on magnet strength, installation angle, material flow rate, and size of contaminants. A well-installed magnetic plate machine is able to deliver continued removal of ferrous impurities with only minimal maintenance and zero energy consumption in the case of permanent magnets.
Types of Magnetic Plates
There are numerous configurations of magnetic plates, as each type suits the different needs in diverse industries. Electro Flux Equipments offers an extended series that has been engineered for strength, durability, and compatibility with complex industrial systems. A few of the most common types have been listed here:
1. Permanent Magnetic Plates
These plates utilize strong permanent magnets made from ferrite or rare-earth materials such as neodymium. They possess continuous magnetic force without the need for power and thus suit areas that require energy efficiency. Permanent magnetic plates will be used in food processing, plastics handling, and grain handling because they are highly effective in the removal of small ferrous contaminants with precision.
2. High-Intensity Rare-Earth Plates
These plates offer deeper field penetration to provide better capture of fine metallic particles, designed for applications that require stronger magnetic forces. They have also served very effectively in the handling of powders, granular materials, and abrasive substances.
3. Electromagnetic Plate Magnets
These plates are electrically operated and allow for immediate on/off switching of the magnetic field. With the option to vary the field strength, they are suitable for applications requiring high volume throughput or thick burden depths. Unlike permanent magnet plates, electromagnetic forms allow instant demagnetization for quick cleaning.
4. Self-Cleaning Magnetic Plate Separator Systems
A magnetic plate separator incorporated into a self-cleaning arrangement is ideal for applications requiring continuous operations. Such systems automate the removal of captured contaminants, providing an uninterrupted workflow in industries where lost time means lost money.
Each of these configurations can be designed to function within a range of conveyor widths, chute sizes, and material flow characteristics, enabling them to be incorporated easily into existing processing lines.
Industrial uses of magnetic plates
These versatile machines have varying ranges of industrial applications, making them an inseparable part of modern processing and manufacturing operations. The key applications of a magnetic plate machine include:
Food Processing Industry
Product purity in the manufacture of food is both a legal and a safety requirement. The magnetic plate separator removes ferrous contaminants from spices, grains, flour, sugar, and other food ingredients, hence preventing contamination and protecting the downstream equipment.
Plastic and Polymer Processing
These ferrous impurities can damage grinders, extruders, and moulding machines in the plastic reprocessing and moulding units. Magnetic plate machines ensure clean plastic granules that are free from metallic fragments.
Recycling Plants
Magnetic separation equipment offers added advantages to recycling facilities as it effectively removes metallic contaminants from shredded plastics, wood, rubber, and textile waste. A magnetic plate separator can accelerate the sorting process while increasing the material recovery rates.
Pharmaceutical and Chemical Industries
Metallic particles need to be removed from powders, tablets, and liquid chemicals as per strict purity standards. Magnetic plates make the production environment safe and contamination-free.
Mining and Mineral Processing
The metallic impurities may result in severe damage to crushers and pulverisers during mining operations. Magnetic plates act as barriers, catching the tramp metal before it reaches the critical machines.
Ceramic and Glass Production
Magnetic plates remove contamination of iron in clay, silica, and other raw materials; this improves the quality of the final product and avoids defects.
Electro Flux Equipments: Magnetic Separation Experts You Can Trust
Electro Flux Equipments is one of the major manufacturers of magnetic separation machinery, including heavy-duty and high-performance magnetic plate machines and separator systems for varied industrial applications. With innovation, quality, and customer support, the company assures dependable solutions protecting machinery, improving productivity, while maintaining material purity across industries. Their magnetic plate products are engineered to withstand heavy-duty operations and deliver long-lasting magnetic performance with minimal maintenance.
Conclusion
A magnetic plate forms a very important part of industrial processing as it allows an easy and very efficient way of removing ferrous contaminants. Ranging from permanent plates through fully automated magnetic plate separator systems, solutions will exist to meet the needs of a wide array of industries. Backed by superior engineering and robustness, like that available from Electro Flux Equipments, magnetic plates will prove indispensable for any system that employs magnetic separation equipment.
