Introduction to Magnetic Separators in 2025
In today’s rapid speed of industry, there is never more need for dependable separation technology. For recycling and mining, food and pharmaceutical production, each sector must contend with the elimination of ferrous foreign material from the product to attain safety, quality, and regulation. With our trek through 2025, improved magnetic separation equipment continues to increase levels of efficiency and versatility in many uses.
Today’s magnetic separator machine is far more than a basic device to attract stray iron pieces. With advancements in magnetic power, compatibility of the material, and automation, the machines have become an integral part of the process flow in most industries. In the discussion below, we cover five high-performance magnetic separator types that are making a massive impact this year.
Overband magnetic separators are one of the most universal across

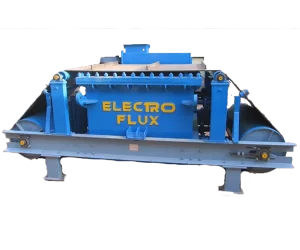

1. Overband Magnetic Separators
bulk material handling industries such as mining, construction and demolition waste, and municipal solid waste, amongst others. Overband magnetic separators are mounted on top of conveyor belts to continuously extract ferrous impurities from streams of materials.
The system includes a magnet block and an automatically revolving belt. As material travels along the conveyor, the magnet picks up and holds ferrous objects. The self-cleaning belt transports the metal to a discharge point, allowing non-magnetic objects to travel without pause.
Best for installations that are heavy in bulk, they minimise manual sorting to the bare essentials, minimise equipment wear and tear, and produce the greatest level of ultimate product purity. Well installed, an overband magnetic conveyor belt system separator enhances overall processing efficiency by a substantial amount.

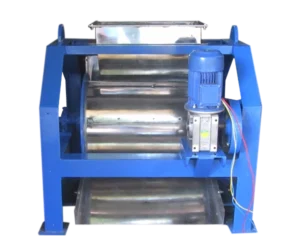

2. Drum Magnetic Separators
Drum magnetic separators are typically applied for wet or dry processing, depending on the material to be processed. Drum magnetic separators are made up of a rotating drum with magnets within that draw ferrous materials while passing over or through the equipment.
One of the main advantages of drum separators is that they are versatile. They may be used to discharge tramp iron from process streams, recover magnetic material from mine ore, or purify food-grade material further. Drum separators are used extensively throughout the mineral processing, foundry, ceramics, and food processing industries.
The steady and continuous running of drum separators provides high capacity and minimal operator involvement, making them one of the most dependable forms of magnetic separation equipment.

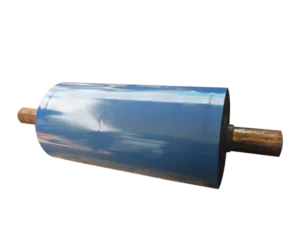

3. Magnetic Pulley
Magnetic pulley separators are an intelligent choice over overband systems and are very effective for light to medium-duty applications. They take the place of the head pulley of a conventional conveyor and have an internal magnetic field that traps ferrous particles as the material is run over.
The magnetic field pulls the metal trash, which is clamped to the belt surface and subsequently pushes out piece by piece as the belt revolves. This arrangement makes magnetic pulleys an ideal space-conveying equipment in small-sized processing plants or as part of multi-stage separation technology.
Applications like textile use, glass recycling, grain milling, and plastic processing prefer the simplicity and economy of this type of separator. Along with a magnetic separator for a conveyor belt system, they save cutting tools and crusher wear and ensure improved material purity downstream.
4. Magnetic Roll Separators
For weakly magnetic or paramagnetic material separations, the high-intensity roll separators offer a most welcome solution. High-intensity roll separators employ strong rare-earth magnets to produce strong magnetic field gradients and hence allow them to recover particles not capable of being attracted by other magnetic systems.
These machines are used in the processing of silica sand, the purification of quartz, and the extraction of rare earth elements. Their high-performance capability makes them suitable for the fine or dry streams of material when other magnetic separator machines do not perform as well.
High-intensity roll separators are highly effective and provide higher rates of material purity, particularly when used with other separation methods such as air classification or screening.

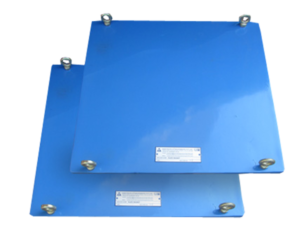

5. Plate Magnetic Separator
Where gravity-fed equipment such as chutes, hoppers, and ducts is employed, grate and plate magnets provide an effective but straightforward answer. Even though these are some of the simplest magnetic separators on the market, they serve a crucial function in providing contamination-free processing in those sectors demanding high hygiene levels.
Grate magnets usually comprise a grid of magnetic tubes that catch and pick up metal particles as products are in transit. Plate magnets, however, are flat magnets mounted above or in the flow streams to pick up ferrous trash from flowing materials.
Widely utilised in the food, pharmaceutical, and chemical industries, these separators play a fundamental part in guaranteeing product integrity as well as the safety of consumers. Even though their method of operation would seem somewhat primitive, their contribution to quality control is crucial.
Why Magnetic Separation Is Still Important in 2025
The ongoing development of magnetic separation devices in 2025 reflects the increased demand for cleaner production, safer conditions, and environmentally friendlier processes. Some fundamental reasons account for their ongoing applicability:
- Product Purity: Magnetic separators ensure that the finished product is free from contamination, especially when it is food-grade and used in medicine.
- Equipment Protection: The removal of ferrous particles before crushers, grinders, or extruders helps minimise wear and tear, increasing equipment life.
- Operational Efficiency: Automated metal separation allows businesses to process more material with fewer errors, less downtime and labour required.
- Eco-Friendly: Higher separation efficiency translates into better material recovery, less energy used in recycling, and less material sent to the landfill.
As there is increased application of processes becoming digitised and sustainability acting as the sole driver, magnetic separator machines are being designed nowadays for smart control system compatibility and energy-efficient operations.
Choosing the Correct Magnetic Separator
With different types of magnetic separators available in the market, selecting the correct one can be painful. Consider the following:
- Material size: Fine powders, granules, big solids, or commingled trash all necessitate varying sizes of separator.
- Flow rate: High-volume lines might require self-cleaning, high-volume technology.
- Space for installation: Overband and drum units are bigger, and pulley and grate types are more mobile.
- Application environment: Wet and dry, hot and ambient, corrosive and neutral—each influences the design.
Cooperation with an experienced engineering staff assists in the fine-tuning of the solution to fit particular process demands. Proper selection of a separator not only optimises ROI but also safety and compliance.
Conclusion
As more industries move towards precision and automation, the need for efficient magnetic separation devices will continue to grow. The five high-capacity magnetic separator models highlighted in this article—overband, drum, pulley, roll, and grate/plate—are all specialised in their processes and cannot be eliminated in their respective sectors.
Their capacity to enhance the effectiveness of processes, safeguard costly equipment, and aid in material quality makes them a worthwhile investment for any processing or manufacturing plant. Processing bulk waste, minerals, foodstuffs, or finely powdered substances, there is generally available a magnetic separator machine capable of making a quantifiable difference.
Crops that can anticipate future needs for system upgrades or greater product purity would benefit by investigating these technologies in more depth and incorporating them in their material handling operations in 2025 and beyond.
